Elevate your engine repair precision with the FUERD BMW Mini Special Timing Tool Kit, expertly engineered for the N12 and N14 1.6L turbocharged gasoline engines. As a leading manufacturer with over 35 years of expertise in automotive precision tools, FUERD delivers OE-matched solutions that ensure flawless camshaft and crankshaft alignment during timing chain service. This kit prevents costly valve-to-piston interference, reduces reassembly errors, and minimizes downtime in professional workshops - trusted by mechanics worldwide for BMW and MINI vehicles.
Key Compatibility
Designed specifically for BMW MINI Cooper S and Cooper Works models equipped with the N12 (2007–2013) and N14 (2011–2015) engines:
• MINI Cooper S (R56): 2007–2013, 1.6L Turbo (N12)
• MINI Cooper S (R55 Cabrio): 2008–2013, 1.6L Turbo (N12)
• MINI Cooper S (R57 Convertible): 2009–2015, 1.6L Turbo (N12/N14)
• MINI Cooper Works (JCW): 2012–2015, 1.6L Turbo (N14)
• BMW 1 Series (E81/E87): 116i, 118i, 120i models with N12/N14 variants (select markets)

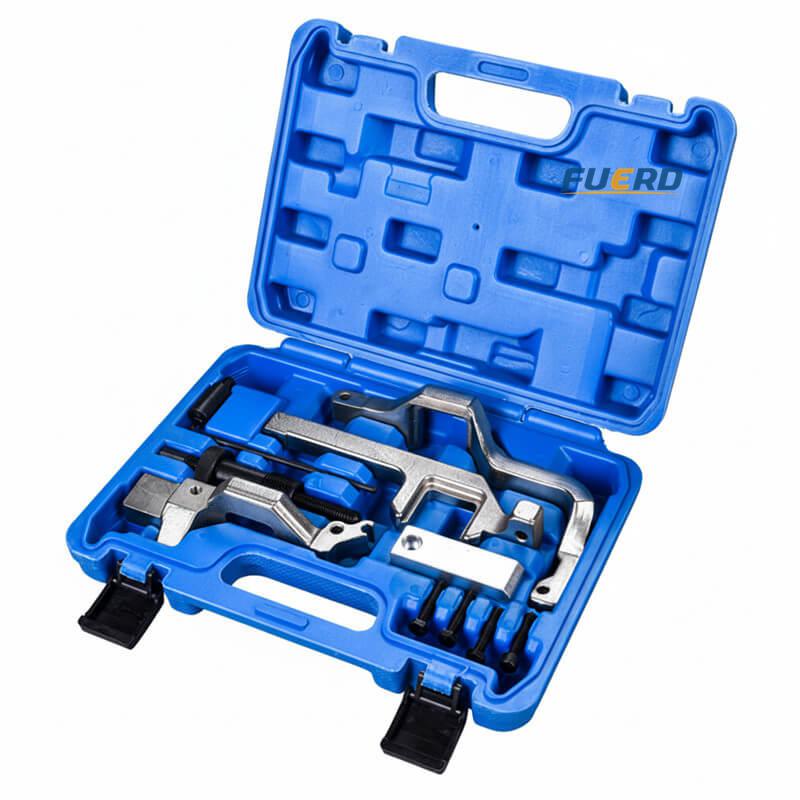

What's Included in the Kit
This comprehensive 8-piece set provides everything needed for secure timing chain tensioning, camshaft locking, and crankshaft positioning. Crafted from high-grade chrome-vanadium steel (Cr-V) with hardened finishes for superior durability and corrosion resistance:
• Camshaft Holding Tool: Locks camshafts at precise TDC positions to maintain valve timing integrity.
• Crankshaft Locking Pin: Secures the crankshaft at top dead center, preventing rotation during chain replacement.
• Timing Chain Tensioner Lock Pin: Holds the hydraulic tensioner in place for safe disassembly and reassembly.
• Variable Valve Timing (VANOS) Solenoid Holding Fixture: Stabilizes VVT components to avoid misalignment.
• Flywheel Locking Tool: Grips the flywheel for bolt removal without slippage.
• Crankshaft Pulley Holder: Prevents pulley rotation during front-end service.
• Guide Pins and Alignment Bars (2x): Ensures accurate chain routing and component seating.
• Heavy-Duty Storage Case: Blue molded EVA foam insert for organized transport and protection.
All components feature tolerances of ±0.01mm for OEM-level accuracy, backed by FUERD's 50+ design patents and rigorous quality testing.
Precision Engineering & Benefits
At FUERD, our vertical integration—from precision casting and 5-axis CNC machining to forging and assembly—guarantees tools that outperform generics. Compliant with CE, TUV, CSA, FCC, UL, RoHS, ISO9001:2008, and IATF16949 standards, this kit offers:
• Unmatched Durability: Heat-treated Cr-V steel withstands high-torque applications and repeated use in demanding shop environments.
• Error-Proof Alignment: Prevents chain jump, bent valves, or piston damage—common pitfalls in N12/N14 turbo engines with their sensitive variable valve timing systems.
• Time-Saving Efficiency: Reduces service time by up to 40% compared to makeshift solutions, ideal for high-volume 4S shops or independent repair centers.
• Cost-Effective Reliability: Factory-direct pricing delivers high-end performance without the premium markup, supporting B2B scalability for distributors and fleets.
Mechanics praise its reliability: "FUERD's N12/N14 kit nailed the cam alignment on my MINI Cooper S—zero comebacks and spot-on tensioning. Precision you can trust." – European Auto Shop Owner.
Quick Usage Guide
Always refer to the BMW/MINI service manual for torque specs and full procedures.
1.Rotate engine to TDC on cylinder #1 using the crankshaft locking pin.
2.Install camshaft holding tool and VANOS fixture to secure phasing.
3.Lock the tensioner and flywheel; remove/replace timing chain.
4.Realign using guide pins, torque to spec, and rotate engine twice to verify.
5.Remove tools and test-run.
Specifications
• Material: Chrome-Vanadium Steel (Cr-V) with Black Oxide Finish
• Tolerance: ±0.01mm
• Weight: 4.5 kg (kit total)
• Dimensions (Case): 14" x 10" x 3" (35.5 x 25.4 x 7.6 cm)
• Warranty: Lifetime against manufacturing defects (excludes misuse)
• OEM Cross-Reference: Equivalent to BMW 11 9 220 / 11 9 221 series tools
Ready to safeguard your BMW MINI repairs? Contact FUERD sales at Sales@fuerd.com or +86 13989303035 for bulk pricing, custom OEM/ODM options, or free compatibility analysis. Visit fuerdtools.com to explore our full range of engine timing solutions - precision manufactured in Ningbo, China, for global professionals.
