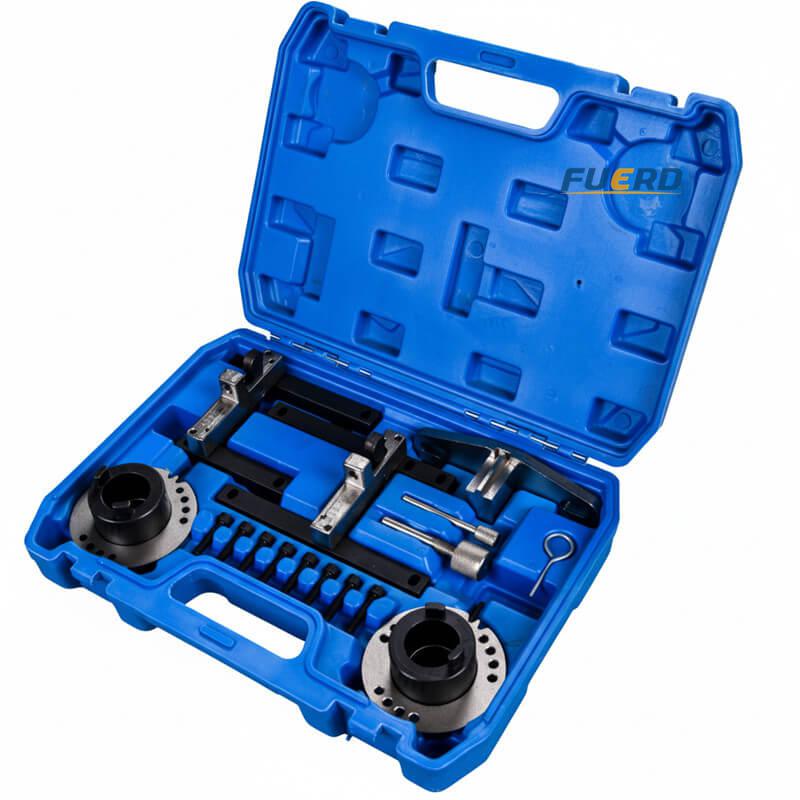

Designed exclusively for Ford 1.0T 3-cylinder EcoBoost engines, this precision timing tool kit ensures camshaft and crankshaft alignment during maintenance. Engineered by FUERD Tools with 35+ years of automotive tool expertise, it eliminates valve-piston collision risks and guarantees optimal valve timing—critical for preserving the performance of Ford's turbocharged powertrains.
Compatibility
Vehicles
• Ford EcoSport (2013-2023)
• Ford Fiesta Mk7/Mk8 (2012-2023)
• Ford Focus Mk3/Mk4 (2011-2023)
• Ford Mondeo Mk5 (2014-2022)
• All Ford models equipped with 1.0T/1.1L 3-cylinder EcoBoost engines
Maintenance Scenarios
• Timing belt/chain replacement
• Valve adjustment
• Cylinder head removal
• Engine rebuilds
• Turbocharger maintenance
Core Advantages
1. Surgical Precision
Tolerance control of ±0.01mm (CNC-machined)
Matches Ford OEM specifications (equivalent to Ford service tool standards)
Eliminates timing drift in 3-cylinder turbocharged engines
2. Industrial-Grade Durability
Constructed with Cr-V steel (HRC 52-56 hardness)
Corrosion-resistant chrome plating
Tested for 10,000+ cycles in professional workshop environments
3. Efficient Workflow Design
Lightweight components (total kit weight: 3.2kg)
Color-coded adapters for quick identification
Compatible with common workshop tool systems
4. FUERD Manufacturing Assurance
Vertical integration from raw material casting to final assembly
50+ design patents applied in precision tooling
24/7 automated production ensures consistency
Usage Guidelines
1. Rotate engine to TDC (Cylinder #1)
2. Secure crankshaft with TDC alignment pin
3. Install camshaft locking plate (refer to Ford service manual)
4. Use tensioner tool to release timing chain/belt tension
5. Perform maintenance (replace components, adjust valves)
6. Recheck alignment post-maintenance
7.Remove tools in reverse order
Safety Note: Always follow Ford factory torque specifications
