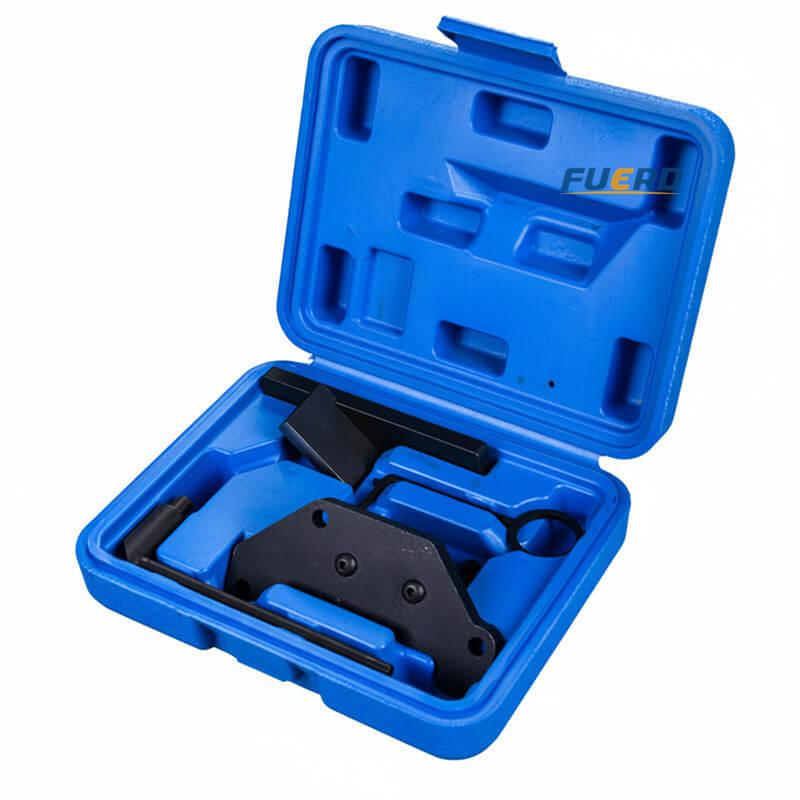

The Peugeot Citroen Gasoline 1.2 Timing Tool Kit is a precision-engineered set designed for accurate camshaft and crankshaft alignment in Peugeot, Citroen, and compatible 1.0L/1.2L VTi gasoline engines. Built to OEM standards with ±0.01mm tolerance, this kit ensures flawless valve timing during belt/chain replacement, head gasket service, or engine rebuilds—eliminating valve-to-piston interference and guaranteeing long-term engine performance.
Compatible Engines & Vehicles
Engine Families
• Peugeot/Citroen 1.0L VTi (3-cylinder)
• Peugeot/Citroen 1.2L VTi (3-cylinder)
• Peugeot/Citroen 1.2L PureTech (turbocharged variants, where applicable)
Vehicle Models
|
Brand |
Models |
Model Years |
|
Peugeot |
208, 2008, 301, 308, 3008, 5008, Partner |
2012 - Present |
|
Citroen |
C1, C3, C4 Cactus, C-Elysee, DS3 |
2012 - Present |
|
Toyota/PSA |
Aygo (2nd Gen), C1 II, 108 |
2014 - Present |
Kit Contents
• Camshaft Locking Plate - Secures intake/exhaust camshafts at precise phase angles.
• Crankshaft Alignment Pin - Locks crankshaft at Top Dead Center (TDC) for cylinder #1.
• Tensioner Locking Tool - Holds timing belt/chain tensioner in place during servicing.
• Auxiliary Alignment Tools - Includes pins, brackets, and hardware for full system stabilization.
• Durable Storage Case - Custom-molded to protect tools during transport and storage.
Material & Build Quality
• Chromium - Vanadium Steel (Cr-V) - For high-strength components (locking plates, pins).
• Precision - Machined Aluminum - For lightweight yet rigid alignment brackets.
• Corrosion - Resistant Coating - Ensures longevity in workshop environments.
Key Features
• OEM-Level Precision - Matches factory tooling specs for Peugeot/Citroen 1.2L engines.
• Time-Saving Design - Streamlines timing procedures, reducing service time by 30% vs. generic tools.
• Error Prevention - Eliminates guesswork in cam/crank alignment, preventing costly engine damage.
• Versatility - Compatible with both timing belt and chain-driven variants of 1.0L/1.2L engines.
Usage Instructions (Step-by-Step)
1. Prepare the Engine - Ensure the vehicle is on level ground, battery disconnected, and timing cover removed.
2. Set Crankshaft to TDC - Use the crankshaft alignment pin to lock the crankshaft at Top Dead Center for cylinder #1.
3. Install Camshaft Locking Plate - Secure the camshafts using the dedicated locking plate, verifying zero play in alignment.
4. Service Components - Replace timing belt/chain, gaskets, or perform required repairs while tools remain in place.
5. Verify Alignment - Rotate the engine manually twice after reassembly and re-check all timing marks before startup.
Why Choose FUERD’s Peugeot Citroen 1.2 Timing Tool Kit?
• 35+ Years of Expertise - FUERD is a trusted manufacturer of automotive tools since 1987, with 50+ design patents.
• IATF16949 & ISO9001 Certified - Our production processes meet global automotive quality standards.
• Factory-Direct Quality - Vertical integration (from forging to CNC machining) ensures uncompromised precision and cost efficiency.
• B2B Customization Support - OEM/ODM services available for bulk orders or branded tooling solutions.
Technical Specifications
• Tolerance Rating: ±0.01mm
• Material Hardness: 58–62 HRC (Cr-V components)
• Weight: 2.8 kg (6.2 lbs)
• Warranty: 12 months against manufacturing defects.
Order & Inquiries
For bulk pricing, custom branding, or technical support, contact our sales team:
• Email: Sales@fuerd.com
• Phone: +86 13989303035
FUERD Machinery – Precision Tools for Professional Mechanics Since 1987.
